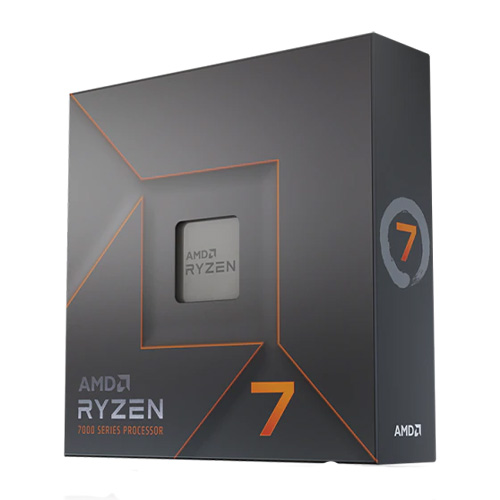

AMD-RY7-7700X

Specification

• Socket: AM5
• Type: AMD Ryzen 7
• Clock Speed: 4.5 GHz
• Turbo Speed: 5.4 GHz
• Cores: 8 Core
• Core Size:
  • CPU Cores: TSMC 5nm FinFET
  • I/O Die: TSMC 6nm FinFET
• Threads: 16
• Cache:
  • L1 Cache: 512KB
  • L2 Cache: 8MB
  • L3 Cache: 32MB
• TDP: 105W (142W Turbo)
• Graphics: Yes
• Graphics Details:
  • AMD Radeon Graphics
  • Graphics Cores: 2
  • Frequency: 2200 MHz
  • GPU Base: 400 MHz
  • USB Type-C DisplayPort Alternate Mode support
• Memory:
  • Memory Channels: 2
  • Max. Memory: 128GB
  • System Memory Subtype: UDIMM
  • Max Memory Speed:
    • 1x1R: 5200 MT/s
    • 1x2R: 5200 MT/s
    • 2x1R: 3600 MT/s
    • 2x2R: 3600 MT/s
• Max PCI Express Lanes: 28/24 (Total/Usable)
  • Additional Usable PCIe Lanes from Motherboard:
    • AMD X670E: 12x Gen4
    • AMD X670: 12x Gen4
    • AMD B650E: 8x Gen4
    • AMD B650: 8x Gen4
• Cooler: No
• Special Features:
  • AMD EXPO Technology
  • AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.1150 kg
• Warranty: 3 Years

The Dominant Gaming Desktop Processor

Lead your team to victory with the top 8-core AMD gaming processor.

When you have the world’s most advanced processor for designers and content creators, the possibilities are endless. Whether you are designing the next skyscraper or animating a complex character, you need a powerful processor that can handle your workflow’s full spectrum of computing demands.

Hands down, the AMD Ryzen 7000 Series desktop processors set the bar for performance-seeking artists and engineers alike.
