Description

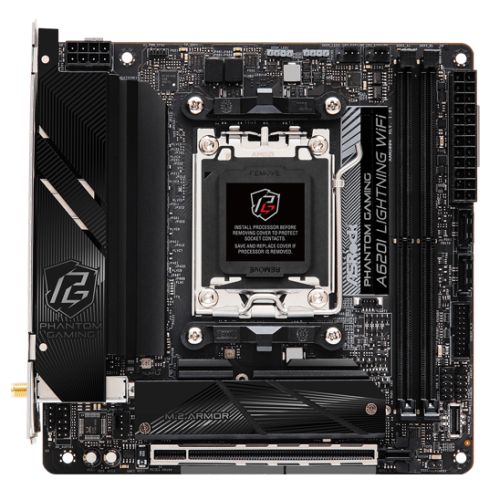

Asrock A620I LIGHTNING WIFI, AMD A620, AM5, Mini ITX, 2 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2

ASRock A620I Lightning WiFi Motherboard Specifications

Model: A620I Lightning WiFi

Description: The ASRock A620I Lightning WiFi is a high-performance Mini ITX motherboard designed for AMD AM5 Ryzen™ 7000 Series processors. It offers advanced features including DDR5 support, PCIe 4.0, and robust connectivity options, making it suitable for high-end gaming and computing needs.

Specifications:

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: AMD AM5
Chipset: AMD A620
DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel), supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO)
RAM Slots: 2 x DIMM
RAM Speeds: Up to 7200+(OC)
Maximum Memory: 96GB
Graphics: Integrated Graphics* (*Graphics specifications may vary between CPU types)
Graphics Ports: 1 x HDMI
PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
Storage:
- 2 x SATA III
- 1 x M.2 (2280) – PCIe 4.0 x4
- 1 x M.2 (2280) – PCIe 3.0 x4
RAID Support:
- RAID 0 and RAID 1 for SATA storage devices
- RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Wireless:
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Dual-Band 2×2 with extended 6GHz band support
- 2 antennas (2 Transmit x 2 Receive) diversity tech
- Bluetooth 5.2 + High speed class II
- Supports MU-MIMO
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported:
- Rear:
  - 1 x USB 3.2 Gen2 Type-C
  - 2 x USB 3.2 Gen2 Type-A*
  - 1 x USB 3.2 Gen1 Type-A*
  - 2 x USB 2.0
- Front:
  - 1 x USB 3.2 Gen1 Type-C
  - 2 x USB 3.2 Gen1 Type-A
  - 2 x USB 2.0
- (USB32_23 are Lightning Gaming Ports)
Back Panel I/O Ports:
- 2 x Antenna
- 1 x HDMI
- 2 x USB 3.2 Gen2 Type-A
- 1 x USB 3.2 Gen1 Type-A
- 1 x USB 3.2 Gen2 Type-C
- 2 x USB 2.0
- 1 x RJ-45 LAN
- 1 x BIOS Flashback Button
- HD Audio Jacks
Internal I/O Connectors:
- 2 x Addressable LED
- 2 x CPU/Water Pump Fan
- 1 x Chassis/Water Pump Fan
- 1 x 24 pin ATX
- 1 x 8 pin 12V
- 1 x Front Panel Audio
- 1 x USB 2.0
- 1 x USB 3.2 Gen1
- 1 x Front Panel Type-C USB 3.2 Gen1
Accessories:
- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Screw for M.2 Socket
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.2000 kg
Warranty: 3 Year Replacement Warranty

ASRock A620I Lightning WiFi Motherboard Features and Specifications

Model: A620I Lightning WiFi

Key Features:

Processor Support: Supports AMD Socket AM5 Ryzen™ 7000 Series Processors.
Power Phase Design: 8+2+1 Power Phase with Dr.MOS for smooth power delivery and enhanced performance.
Memory Support: Supports DDR5 7200+ (OC).
PCIe Slots: 1 PCIe 4.0 x16.
Graphics Output: HDMI.
Audio: Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio for an immersive audio experience.
Storage:
- 2 x SATA3
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3 x4)
USB Ports:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Front)
- 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
- 4 x USB 2.0 (2 Rear, 2 Front)
Networking:
- Phantom Gaming 2.5 Gb/s LAN
- 802.11ax WiFi 6E + Bluetooth

Additional Features:

Optimized VRM Design:
- Dr.MOS: Integrated power stage solution providing improved thermal performance and efficiency.
- 8+2+1 Power Phase Design: Ensures stable power delivery to the CPU for enhanced performance.
- 8 Layer PCB: Provides stable signal traces, lower temperature, and higher energy efficiency for memory overclocking.
Reinforced Steel Slot (PCIe 4.0):
- Extra anchor points and stronger latch to ensure signal stability and support for heavy graphics cards.
DDR5 XMP & EXPO Support:
- Supports Intel® XMP/AMD EXPO™ profiles for easy DDR5 memory overclocking.
Nahimic Audio:
- Audio That Matters: Engaging and vibrant audio experience for various audio devices.
- Enhance Communication Quality: Reduces noise and improves vocal clarity.
- Sound Tracker: Visual indicator for directional sound in games.
- Works on Any Device: Compatible with all audio tools and devices.
Lightning Gaming Ports:
- High-speed connectivity with lower jitter and latency for gaming peripherals.
Polychrome RGB:
- Onboard RGB headers and addressable RGB header for customizable lighting effects.
Phantom Gaming 2.5 Gb/s LAN:
- Enhanced networking performance for gaming and high-quality streaming, with automatic game traffic prioritization.
Wi-Fi 6E 802.11ax:
- Utilizes 6GHz spectrum band for faster speeds and enhanced internet traffic management.
EZ Setting:
- Auto Driver Installer: Installs necessary drivers automatically after OS installation.
- BIOS Flashback: Simple BIOS update process without needing additional components.
Flexible Integrated IO Shield:
- Adjustable IO shield for a perfect fit in the chassis.
