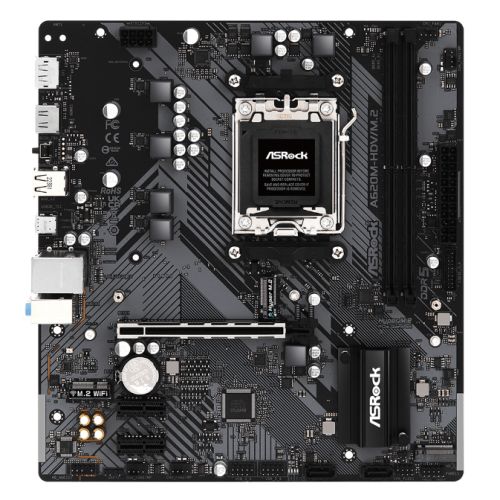

ASROCK – ASMBA620M-HDVM.2

Asrock A620M-HDV/M.2, AMD A620, AM5, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, PCIe4, 2x M.2

ASRock A620M-HDVM.2 – Product Specifications

Description

The ASRock A620M-HDVM.2 is a Micro ATX motherboard designed for desktop use, supporting AMD AM5 Ryzen™ 7000 Series processors. It features DDR5 memory support and a range of connectivity options suitable for high-performance computing.

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 5600+(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*
  • *Graphics specifications may vary based on CPU type
• Graphics Ports:
  • 1 x HDMI
  • 1 x DisplayPort
• PCI/PCI Express:
  • 1 x PCIe 4.0 x16 (supports x16 mode)
  • 2 x PCIe 3.0 x1
• Storage:
  • 2 x SATA III
  • 1 x M.2 (2280) – PCIe
  • 1 x M.2 (2260/2280) – PCIe
• RAID Support:
  • RAID 0 and RAID 1 for SATA storage devices
  • RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
• Wireless: –
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported:
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
• Back Panel I/O Ports:
  • 2 x Antenna Mounting Points
  • 1 x HDMI
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 2.0
  • 1 x RJ-45 LAN
  • 1 x BIOS Flashback Button
  • HD Audio Jacks
• Internal I/O Connectors:
  • 1 x Power LED and Speaker
  • 1 x CPU Fan
  • 3 x Chassis/Water Pump Fan
  • 1 x 24 pin ATX
  • 1 x 8 pin 12V
  • 1 x Front Panel Audio
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1
• Accessories:
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 3 x Screws for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Year Replacement Warranty

ASRock A620M-HDVM.2 – Overview

Key Features:

• Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
• Power Phase: 4+1+1 Power Phase, Dr.MOS
• Memory Support: DDR5 5600+ MHz (OC)
• Expansion Slots:
  • 1 PCIe 4.0 x16
  • 2 PCIe 3.0 x1
  • 1 M.2 Key E for WiFi
• Integrated Graphics: AMD RDNA™ 2 Graphics*
  • *Graphics specifications may vary based on CPU type
• Graphics Outputs: HDMI, DisplayPort
• Audio: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• Storage:
  • 2 SATA3
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 1 M.2 (PCIe Gen3x2)
• USB Ports: 5 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 2 Front)
• LAN: Realtek Gigabit LAN
• Special Features: ASRock Auto Driver Installer, BIOS Flashback

Detailed Features:

• Dr. MOS: Integrated power stage solution optimized for higher current delivery and better thermal performance compared to traditional MOSFETs.
• 2oz Copper PCB: Provides stable signal traces and power shapes for enhanced energy efficiency and overclocking support.
• Reinforced Steel Slot [PCIe 4.0 Version]: Adds stability with extra anchor points and a stronger latch to support heavy graphics cards and ensure signal stability.
• Nahimic Audio:
  • Audio That Matters: Offers immersive sound quality across various audio devices.
  • Enhanced Communication Quality: Ensures noise-free conversations with dynamic sound clarity.
  • Sound Tracker: Visual indicator to detect the direction of sounds, enhancing gaming immersion.
  • Works on Any Device: Compatible with various audio tools and devices for optimal sound quality.
• High-Speed M.2 Solution: Supports PCIe 4.0 M.2 SSDs for faster data transfers compared to previous generations.
• USB 3.2 Gen1 Type-C: Delivers up to 5 Gbps data transfer rates and a reversible design for convenience.
• M.2 (KEY E) For WiFi: Allows for optional 802.11ac wireless connections (Wi-Fi module not included).
• EZ Setting:
  • Auto Driver Installer: Automatically downloads and installs drivers after OS installation.
  • BIOS Flashback: Simple BIOS updating with a USB and power supply, no other components required.

Specifications:

• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• RAM Slots: 2 x DIMM
• RAM Speed: Up to 5600+ MHz (OC)
• Maximum Memory: 64GB
• Graphics Ports: 1 x HDMI, 1 x DisplayPort
• PCI/PCI Express:
  • 1 x PCIe 4.0 x16 (supports x16 mode)
  • 2 x PCIe 3.0 x1
• Storage:
  • 2 x SATA3
  • 1 x M.2 (2280) – PCIe
  • 1 x M.2 (2260/2280) – PCIe
• RAID Support: RAID 0, RAID 1, RAID 10 for SATA and M.2 NVMe devices
• LAN: GB LAN
• Audio: 7.1 CH HD Audio
• USB Ports:
  • 1 x USB 3.2 Gen1 Type-C (at back)
  • 5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
  • 6 x USB 2.0 (2 at back, 4 at mid-board)
• Back Panel I/O:
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C
  • 3 x USB 3.2 Gen1 Type-A
  • 2 x USB 2.0
  • 1 x RJ-45 LAN
  • 1 x BIOS Flashback Button
  • HD Audio Jacks
• Internal Connectors:
  • 1 x SPI TPM
  • 1 x Power LED and Speaker
  • 1 x CPU Fan
  • 3 x Chassis/Water Pump Fan
  • 1 x 24 pin ATX
  • 1 x 8 pin 12V
  • 1 x Front Audio
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1
• Accessories:
  • 1 x User Manual
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 3 x Screws for M.2 Sockets

Package Information:

• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Year Replacement Warranty
