ASROCK – ASMBA620MPRORS

Asrock A620M PRO RS, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, DP, GB LAN, PCIe4, RGB, 3x M.2

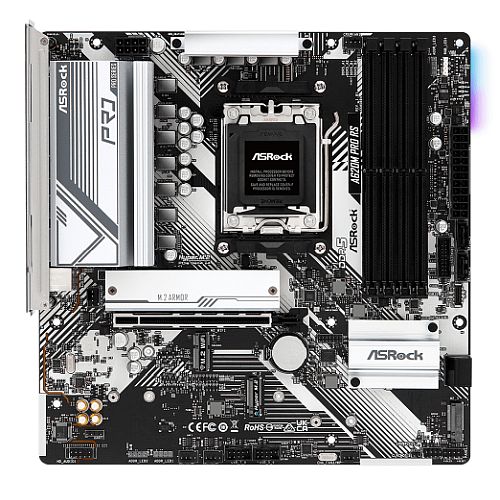

ASRock A620M Pro RS – Detailed Specification

Description:

The ASRock A620M Pro RS motherboard is designed for desktop systems, featuring a Micro ATX form factor and an AMD AM5 socket. It provides a balance of modern features and future-proofing for AMD Ryzen™ processors.

Specifications:

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• DDR Type: DDR5 (Hide)
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6000+
• Maximum Memory: 128GB
• Graphics: Integrated Graphics* (*Graphics specifications may vary between CPU types)
• Graphics Ports:
  • 1 x HDMI
  • 1 x DisplayPort
• PCI/PCI Express:
  • 1 x PCIe 4.0 x16
• Storage:
  • 4 x SATA III
  • 3 x M.2 (2260/2280) – PCIe
• RAID:
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
• Wireless: (Hide)
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported:
  • 1 x USB 3.2 Gen1 Type-C (rear)
  • 5 x USB 3.2 Gen1 (3 rear, 2 mid-board)
  • 8 x USB 2.0 (4 rear, 4 mid-board)
  • 1 x Front USB 3.2 Gen1 Type-C connector
• Back Panel I/O Ports:
  • 2 x Antenna Mounting Points
  • 1 x HDMI
  • 1 x DisplayPort 1.4
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 4 x USB 2.0
  • 1 x RJ-45 LAN
  • 1 x BIOS Flashback Button
  • HD Audio Jacks
• Internal I/O Connectors:
  • 1 x SPI TPM
  • 1 x Power LED and Speaker
  • 1 x RGB LED
  • 3 x Addressable LED
  • 1 x CPU Fan
  • 1 x CPU/Water Pump Fan
  • 3 x Chassis/Water Pump Fan
  • 1 x 24 pin ATX
  • 1 x 8 pin 12V
  • 1 x Front Panel Audio
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1
  • 1 x Front Panel Type C USB 3.2 Gen1
• Accessories:
  • 1 x User Manual
  • 2 x SATA Data Cables
  • 4 x Screws for M.2 Sockets
  • 1 x Standoff for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.3000 kg
• Warranty: 3 Year Replacement Warranty
• M.2 Slot(s): Yes (Hide)
• No. LAN Ports: 1 x LAN (Hide)
• Max LAN Speed: GB LAN (Hide)
• RGB Lighting: Out of the box RGB lighting (Hide)

ASRock A620M Pro RS WiFi – Race Sport (RS) Edition Highlights

Modern and Futuristic Design: The Race Sport (RS) Edition represents the evolution of the popular PRO series, combining attractive specifications with a perfect balance for enhanced performance.

Key Features:

• Processor Support:
  • Socket: AMD Socket AM5
  • Compatible with: Ryzen™ 7000 Series Processors
• Power Design:
  • Power Phase: 6+2+1
  • Dr.MOS: Yes
  • CPU Power: 120W Ready
• Memory:
  • Type: DDR5 6000+ MHz (OC)
• Expansion Slots:
  • PCIe: 1 x PCIe 4.0 x16
  • M.2 Key E: For WiFi
• Graphics Output:
  • Options: HDMI, DisplayPort
• Audio:
  • Codec: Realtek ALC897 7.1 CH HD Audio
  • Technology: Nahimic Audio
• Storage:
  • SATA3: 4 Ports
  • M.2:
    • 2 x Hyper M.2 (PCIe Gen4x4)
    • 1 x M.2 (PCIe Gen3x2)
• USB Ports:
  • USB 3.2 Gen1 Type-C: 2 Ports (1 Rear, 1 Front)
  • USB 3.2 Gen1 Type-A: 5 Ports (3 Rear, 2 Front)
• Networking:
  • LAN: Realtek Gigabit LAN
• Additional Features:
  • ASRock Auto Driver Installer: Automatically downloads and installs drivers
  • BIOS Flashback: Easy BIOS updates with a USB and power supply (no CPU or RAM required)

Detailed Specifications:

• Optimized VRM Design:
  • Enhanced for AMD Ryzen™ 7000X3D series processors, providing better performance for gaming.
• 6 Layer PCB:
  • Ensures stable signal traces and power shapes for lower temperatures and higher energy efficiency.
• Reinforced Steel Slot [PCIe 4.0 Version]:
  • Supports PCI Express 4.0 with extra anchor points and a stronger latch for better signal stability and support for heavy graphics cards.
• Nahimic Audio:
  • Audio Quality: Vibrant and rich, suitable for various audio devices.
  • Communication Quality: Noise-free conversation and clear sound with advanced algorithms.
  • Sound Tracker: Visual indicator for sound directions in 360°.
  • Device Compatibility: Works with Jack, USB, Bluetooth, HDMI, S/PDIF.
• Polychrome RGB:
  • Built-in RGB illumination with onboard and addressable RGB headers for custom lighting effects and synchronization.
• High Speed M.2 Solution:
  • Supports multiple M.2 storage devices with PCIe 4.0 SSDs for lightning-fast data transfer.
• Front USB 3.2 Gen1 Type-C:
  • Delivers up to 5 Gbps data transfer rate with a reversible USB design.
• EZ Setting:
  • Auto Driver Installer: No need for an optical drive; drivers are installed automatically.
  • Pre-Installed IO Shield: Ensures precise installation and prevents interference.
