Description

Asrock A620M PRO RS WIFI, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, PCIe4, RGB, 3x M.2

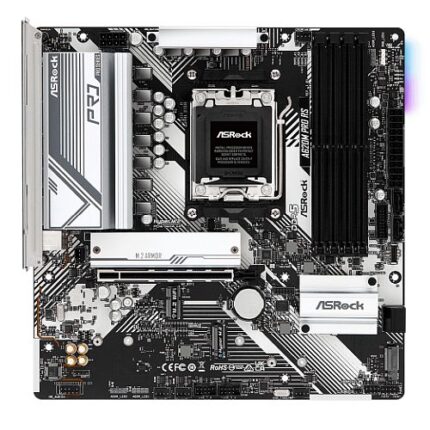

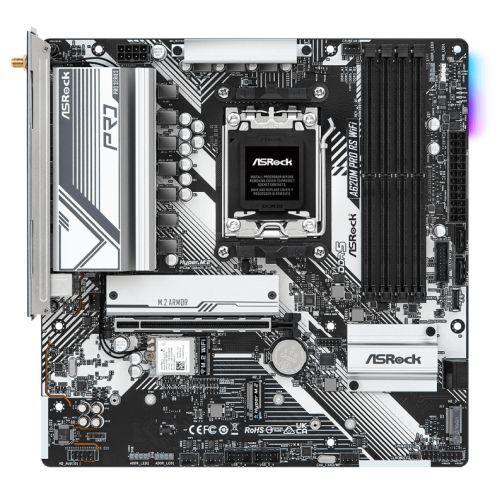

ASRock A620M Pro RS WiFi Motherboard Overview

Description: The ASRock A620M Pro RS WiFi is a Micro ATX motherboard designed for desktop systems with the AMD AM5 socket. It offers a blend of performance and features suitable for both general and gaming use.

Specifications:

Motherboard Type:
- Desktop
Form Factor:
- Micro ATX
Socket:
- AMD AM5
Chipset:
- AMD A620
Memory:
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 6000+
- Maximum Memory: 128GB
Graphics:
- Graphics Ports: 1 x HDMI, 1 x DisplayPort
- Graphics: Integrated Graphics (Specifications may vary between CPU types)
PCI/PCI Express:
- 1 x PCIe 4.0 x16
Storage:
- SATA Ports: 4 x SATA III
- M.2 Slots:
  - 1 x M.2 (2260/2280) – PCIe
  - 1 x M.2 (2260/2280) – PCIe
  - 1 x M.2 (2260/2280) – PCIe
RAID:
- Supports RAID 0, RAID 1, and RAID 10 for both SATA and M.2 NVMe storage devices
Wireless Networking:
- Wi-Fi: 802.11ax Wi-Fi 6E
- Bluetooth: 5.2
- Supports: Dual-Band 2×2 with extended 6GHz band support, MU-MIMO
LAN:
- Speed: Gigabit LAN
Audio:
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported:
- Rear:
  - 1 x USB 3.2 Gen1 Type-C
  - 5 x USB 3.2 Gen1 (3 at back, 2 mid-board)
  - 4 x USB 2.0 (4 at back)
- Front:
  - 1 x Front USB 3.2 Gen1 Type-C connector
Back Panel I/O Ports:
- 2 x Antenna
- 1 x HDMI
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A
- 1 x USB 3.2 Gen1 Type-C
- 4 x USB 2.0
- 1 x RJ-45 LAN
- 1 x BIOS Flashback Button
- HD Audio Jacks
Internal I/O Connectors:
- 1 x SPI TPM
- 1 x Power LED and Speaker
- 1 x RGB LED
- 3 x Addressable LED
- 1 x CPU Fan
- 1 x CPU/Water Pump Fan
- 3 x Chassis/Water Pump Fan
- 1 x 24 pin ATX
- 1 x 8 pin 12V
- 1 x Front Panel Audio
- 2 x USB 2.0
- 1 x USB 3.2 Gen1
Accessories:
- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Additional Features:
- Out of the box RGB lighting
Package Type:
- Retail
Package Weight:
- 1.3500 kg
Warranty:
- 3 Year Replacement Warranty

Note: Some specifications such as M.2 slots and LAN speed have been hidden from the detailed view.

Race Sport (RS) Edition Motherboard Overview

Description: Modern and futuristic, the Race Sport (RS) Edition represents the evolution of the popular PRO series motherboard, offering a perfect balance of attractive specifications and cutting-edge features.

Key Features:

Processor Support:
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Power and Performance:
- 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
Memory:
- Supports DDR5 6000+ MHz (OC)
Expansion Slots:
- 1 PCIe 4.0 x16
Graphics Output Options:
- HDMI, DisplayPort
Audio:
- Realtek ALC897 7.1 CH HD Audio Codec
- Nahimic Audio for enhanced sound quality
Storage:
- 4 SATA3 Ports
- 2 Hyper M.2 (PCIe Gen4x4)
- 1 M.2 (PCIe Gen3x2)
USB Ports:
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
Networking:
- Realtek Gigabit LAN
- 802.11ax Wi-Fi 6E + Bluetooth
Additional Features:
- Supports ASRock Auto Driver Installer
- BIOS Flashback

Design Features:

Optimized VRM Design:
- Enhanced for AMD Ryzen™ 7000X3D series processors, improving performance for gamers.
6 Layer PCB:
- Provides stable signal traces and power shapes, resulting in lower temperatures and higher energy efficiency.
Reinforced Steel Slot [PCIe 4.0 Version]:
- Extra anchor points and a stronger latch ensure stability and support for heavy graphics cards.
Nahimic Audio:
- Audio That Matters: Vibrant and detailed sound through various devices.
- Enhance Communication Quality: Noise-free conversations with consistent vocal levels.
- Sound Tracker: Visual indicator of sound directions for immersive gaming.
- Works on Any Devices: Compatible with various audio tools for optimal sound.
Polychrome RGB:
- Built-in RGB illumination and headers for customizable lighting effects.
High Speed M.2 Solution:
- Accommodates multiple M.2 storage devices, including PCIe 4.0 M.2 SSDs for lightning-fast data transfer.
Wireless Networking:
- Wi-Fi 6E 802.11ax: Extends to the 6GHz band for higher speeds and lower latency.
- M.2 Key-E Module Cap: Fixes SMA cable looseness issues with a Key-E module cap.
Front USB 3.2 Gen1 Type-C:
- Provides up to 5 Gbps data transfer rate with a reversible USB design.
EZ Setting:
- Auto Driver Installer: Installs drivers automatically after OS installation.
- BIOS Flashback: Simplifies BIOS updating with a USB and power supply.
- Pre-Installed IO Shield: Eases installation and prevents interference.
