Description

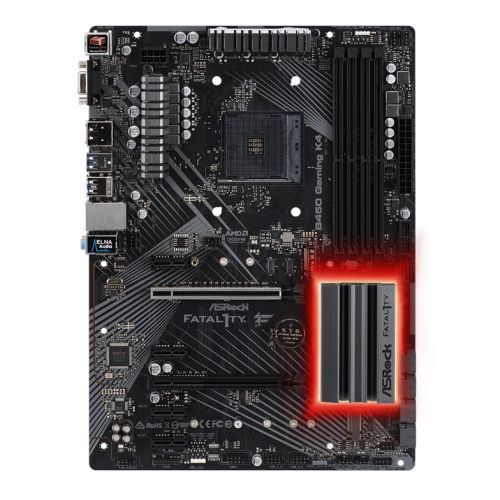

Asrock B450 GAMING K4, AMD B450, AM4, ATX, 4 DDR4, XFire, VGA, HDMI, DP, M.2

ASRock Fatal1ty B450 Gaming K4 Motherboard Features

Specifications

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM4
  • Chipset: AMD B450
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: 3200+(OC)/2933/2667/2400/2133 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
  • Graphics Ports:
    • 1 x VGA
    • 1 x HDMI
    • 1 x DisplayPort
  • Multi-GPU Support: AMD Quad CrossFireX Technology
  • PCI/PCI Express:
    • Summit & Pinnacle Ridge CPUs: 2 x PCIe 3.0 x16
    • 7th Gen CPUs: 2 x PCIe 3.0 x16
    • Raven Ridge CPUs: 2 x PCIe 3.0 x16, 4 x PCIe 2.0 x1
  • Storage:
    • 6 x SATA III
    • 1 x Ultra M.2 (2242/2260/2280) – PCIe
    • 1 x M.2 (2230/2242/2260/2280/22110) – SATA & PCIe
  • RAID: RAID 0, 1, 10
  • LAN: GB LAN
  • Audio:
    • 7.1 CH HD Audio (Realtek ALC892 Audio Codec)
    • Supports Creative Sound Blaster Cinema 5
  • USB Ports Supported:
    • 2 x USB 3.1 Gen2 (Type A & C at back)
    • 6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
    • 6 x USB 2.0 (2 at back, 4 at mid-board)
  • Back Panel I/O Ports:
    • 1 x PS/2 Mouse/Keyboard
    • 1 x D-Sub Port
    • 1 x HDMI Port
    • 1 x DisplayPort 1.2
    • 2 x USB 2.0
    • 1 x USB 3.1 Gen2 Type-A
    • 1 x USB 3.1 Gen2 Type-C
    • 4 x USB 3.1 Gen1
    • 1 x RJ-45 LAN
    • HD Audio Jacks
  • Internal I/O Connectors:
    • 1 x COM Port
    • 1 x TPM
    • 1 x Power LED and Speaker
    • 1 x RGB LED
    • 1 x Addressable LED
    • 1 x AMD Fan LED
    • 1 x CPU Fan
    • 1 x CPU/Water Pump Fan
    • 3 x Chassis/Water Pump Fan
    • 1 x 24 pin ATX
    • 1 x 8 pin 12V
    • 1 x Front Audio
    • 2 x USB 2.0
    • 1 x USB 3.1 Gen1
  • Accessories:
    • Quick Installation Guide
    • Support CD
    • I/O Shield
    • 2 x SATA Data Cables
    • 2 x Screws for M.2 Sockets
  • Package Type: Retail
  • Package Weight: 1.4040 kg
  • Warranty: 2 Year Replacement Warranty

Features

  • AMD StoreMI Technology: Combines SSD and HDD into a single fast drive, utilizing up to 2GB of RAM as a cache for ultra-fast data access.
  • Dual M.2 For SSD: Supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interfaces for high-speed data transfer and compatibility with ASRock’s U.2 Kit.
  • Polychrome RGB: Features onboard RGB headers and an addressable RGB header for customizable lighting effects.
  • Creative Sound Blaster Cinema 5: Enhances audio realism and dynamics, with support for 5.1/7.1 surround sound.
  • 2oz Copper PCB: Offers lower temperatures and higher energy efficiency for overclocking with high-quality copper materials.
  • PCIe Steel Slots: Reinforced to prevent signal interference and ensure stable graphics card installation.
  • Triple Monitor Support: Allows connection of up to three monitors simultaneously from the rear I/O without additional graphics cards.
  • Water Pump Header: Supports water pumps with adjustable voltage for enhanced cooling performance.
  • Digi Power: Digital PWM design for efficient and stable CPU Vcore voltage delivery.
  • Fatal1ty Mouse Port: Customizable mouse polling rates from 125 Hz to 1000 Hz for gaming.
  • Full Spike Protection: Protects components from power surges and voltage spikes.
  • Live Update & APP Shop: Provides software updates and system optimization tools through a dedicated application.

ASRock Motherboard Features

Key Specifications

  • Socket: AMD AM4
  • Memory Support: DDR4 3200+ (OC)
  • PCIe Slots:
    • 2 x PCIe 3.0 x16
    • 4 x PCIe 2.0 x1
  • CrossFireX Support: AMD Quad CrossFireX™
  • Graphics Output:
    • DisplayPort
    • HDMI
    • D-Sub
  • Triple Monitor Support: Yes
  • Audio:
    • 7.1 CH HD Audio (Realtek ALC892 Audio Codec)
    • Supports Creative Sound Blaster™ Cinema 5
  • Storage:
    • 6 x SATA3
    • 1 x Ultra M.2 (PCIe Gen3 x4)
    • 1 x M.2 (PCIe Gen3 x2 & SATA3)
  • USB Ports:
    • 2 x USB 3.1 Gen2 (Rear Type-A + Type-C)
    • 6 x USB 3.1 Gen1 (2 Front, 4 Rear)
  • LAN: Realtek Gigabit LAN

Features

  • AMD StoreMI Technology: Combines SSD and HDD into a single fast drive, utilizing up to 2GB of RAM for ultra-fast data access.
  • Dual M.2 For SSD: Supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface, with compatibility for ASRock’s U.2 Kit.
  • Polychrome RGB: Onboard RGB headers and an addressable RGB header for customizable lighting effects.
  • Creative Sound Blaster Cinema 5: Delivers cinematic audio with 5.1/7.1 surround sound for immersive gaming and movie experiences.
  • 2oz Copper PCB: Enhanced energy efficiency and lower temperature for overclocking with high-quality copper materials.
  • PCIe Steel Slots: Reinforced slots to prevent signal interference and ensure stable graphics card installation.
  • Dual USB 3.1 Gen2 (Type-A + Type-C): Supports high-speed data transfer rates of up to 10 Gbps.
  • Gaming Armor: Provides hardware and software support for reliability and enhanced performance.
  • Super Alloy Motherboard:
    • Premium Power Choke: Enhanced saturation current for improved Vcore voltage.
    • Matte Black PCB: Aesthetic matte black and copper color scheme.
    • High Density Glass Fabric PCB: Reduces gaps between PCB layers to protect against electrical shorts.
  • Triple Monitor Support: Connect up to three displays simultaneously from the rear I/O without needing additional graphics cards.
  • Water Pump Header: Supports popular water pumps with adjustable voltage for optimized cooling performance.
  • Digi Power: Digital PWM design for efficient and stable CPU Vcore voltage delivery.
  • Fatal1ty Mouse Port: Allows customization of mouse polling rates from 125 Hz to 1000 Hz.
  • Full Spike Protection: Protects sensitive components from power surges and voltage spikes.
  • Live Update & APP Shop: Provides easy system optimization and updates through a dedicated application.
