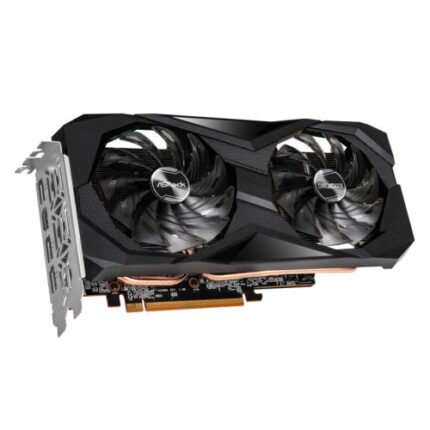

ASROCK – RADRX68XT16ASRPGOC

Asrock RX6800 XT Phantom Gaming 16G OC, PCIe4, 16GB DDR6, HDMI, 3 DP, 2310MHz Clock, Overclocked, RGB

Specification :

• Chipset Manufacturer: AMD
• Interface: PCI Express 4.0
• Graphics Chipset: AMD RX 6800 XT
• Memory Size: 16GB
• Memory Type: GDDR6
• Memory Interface: 256-bit
• Core Clock:
  • Boost Clock: Up to 2310 MHz
  • Game Clock: 2065 MHz
  • Base Clock: 1875 MHz
• Memory Clock: 16 Gbps
• CUDA Cores / Stream Processors: 4608 Stream Processors
• Outputs:
  • 1 x HDMI 2.1 VRR
  • 3 x DisplayPort 1.4 with DSC
• HDCP Support: Yes
• Resolution: Digital Max Resolution: 7680 x 4320
• DirectX Support: DirectX 12 Ultimate
• Max Display Support: 4
• Cooling:
  • Phantom Gaming 3X Cooling System
  • Striped Axial Fan
  • Air Deflecting Fin
  • Ultra-Fit Heatpipe
  • Nickel-Plated Copper Base
  • High-Density Metal Welding
  • Premium Thermal Pad
  • 0dB Silent Cooling
• PSU Requirements: 800W or greater recommended
• Connectors Required: 3 x 8-pin PCIe power
• Software: AMD Radeon Adrenalin 2020 Edition
• Additional Features: See Overview
• Dimensions: 330 x 140 x 56 mm
• Slot Size: 2.8 Slot
• Accessories: 1 x Quick Installation Guide
• Package Type: Retail
• Lighting Effects: Yes
• HDMI: Yes (HDMI)
• DisplayPort: Yes (DisplayPort)
• Package Weight: 2.9000 kg
• Warranty: 2 Year Replacement Warranty

Specifications:

• Boost Clock: Up to 2310 MHz
• Game Clock: 2065 MHz
• Base Clock: 1875 MHz
• Graphics Chipset: AMD Radeon RX 6800 XT
• Memory Size: 16GB
• Memory Interface: 256-bit
• Memory Type: GDDR6
• Memory Clock: 16 Gbps
• Architecture: AMD RDNA 2
• Raytracing: Hardware Raytracing
• Interface: PCI Express 4.0
• Power Connectors: 3 x 8-pin
• Outputs:
  • 3 x DisplayPort 1.4 with DSC
  • 1 x HDMI 2.1 VRR
• Polychrome SYNC: Yes
• Cooling System:
  • Phantom Gaming 3X Cooling System
  • Striped Axial Fan
  • Reinforced Metal Frame
  • Stylish Metal Backplate
  • 0dB Silent Cooling
• Additional Features:
  • Striped Axial Fan: Enhanced airflow with custom stripe structure and polished surface.
  • Air Deflecting Fin: Improves cooling efficiency with V-shaped cutting fins and air vents.
  • Ultra-Fit Heatpipe: Maximizes contact for optimized heat dissipation.
  • Nickel-Plated Copper Base: Maximizes GPU contact area for effective thermal transfer.
  • High-Density Metal Welding: Improves heat dissipation by isolating gaps between pipe and stacked fins.
  • Nano Thermal Paste: Enhances thermal efficiency by eliminating contact area gaps.
  • Premium Thermal Pad: Transfers heat from components to heatsink for better dissipation.
  • Precise Screw Torque: Optimizes cooler mounting pressure to improve thermal efficiency.
  • LED On/Off Switch: Control built-in and connected ARGB LEDs.
  • ARGB Pin-Header: Connects ARGB strips/devices for enhanced lighting effects.
  • Dr. MOS: Integrated power stage solution for improved thermal performance.
  • Premium 90A Power Choke: Enhances Vcore voltage for better stability.
  • Nichicon 12K Black Caps: Longer lifespan capacitors for increased stability.
  • 2oz Copper PCB: Lower temperature and higher energy efficiency for overclocking.
  • Matte Black PCB: Stylish design matching high-end components.
  • High Density Glass Fabric PCB: Reduces gaps to protect against electrical shorts.
  • ASRock Tweak 2.0: Smart fan speed control and performance tweaking.
  • 8K Resolution Support: Handles 8K video output for ultimate visual experience.
  • PCI Express 4.0 Support: Doubles the bandwidth compared to PCI Express 3.0.
