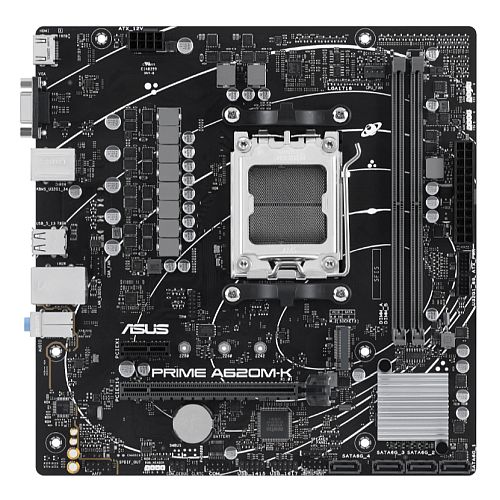

ASUS – AUMBA620MK

Asus PRIME A620M-K, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, GB LAN, PCIe4, 1x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620
• DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel) Non-ECC, Un-buffered Memory
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6400+(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics* (Graphics specifications may vary between CPU types)
• Graphics Ports: 1 x VGA, 1 x HDMI
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode), 1 x PCIe 3.0 x1
• Storage: 4 x SATA III, 1 x M.2 (2242/2260/2280) – PCIe 4.0 x4
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: –
• LAN: 1Gb LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported:
  • Rear: 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
  • Front: 1 x USB 3.2 Gen1 header – supports 2 USB 3.2 Gen1 ports, 2 x USB 2.0 headers – supports 4 USB 2.0 ports
• Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x Realtek 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan, 1 x 24-pin Main, 1 x 8-pin +12V, 1 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen1, 2 x USB 2.0, 2 x Addressable Gen2, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM Port
• Additional Connectors: 1 x Front Panel Audio, 1 x S/PDIF Out, 1 x Speaker, 1 x SPI TPM (14-1pin), 1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x Screw package for M.2 SSD, 1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1000 kg
• Warranty: 3 Years

AMD A620 micro-ATX motherboard, DDR5, PCIe 4.0 Graphics card and PCIe 4.0 M.2 support, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

• AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
• Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
• Comprehensive Cooling: PCH heatsink and Fan Xpert
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Prime

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, PRIME A620M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Cooling

PRIME A620M-K is engineered with an array of hybrid fan headers and two-ounce copper PCB design to ensure your rig stays cool and stable under intense workloads.

Performance

The PRIME A620 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS A620 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible data transfer options.

Customisation

The PRIME A620 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Click here for full product details
