ASUS – AUMBB650MAPRWI2

Asus PRIME B650M-A WIFI II, AMD B650, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe4, 2x M.2

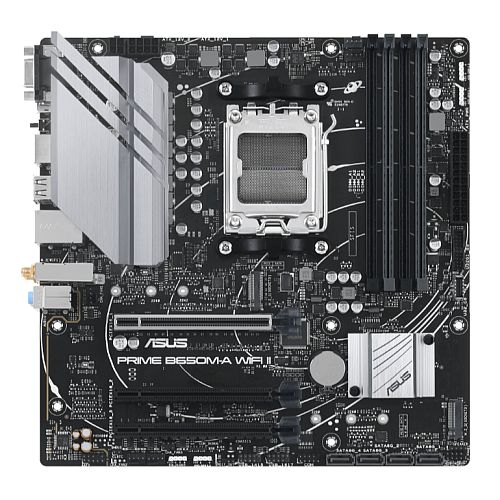

ASUS Prime B650M-A WIFI II Motherboard

Description

The ASUS Prime B650M-A WIFI II is a Micro-ATX motherboard designed for AMD AM5 socket processors, featuring support for DDR5 memory and PCIe 5.0 M.2. It offers high-speed connectivity options, advanced cooling solutions, and customizable RGB lighting, making it ideal for building a high-performance PC.

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD B650
• Memory:
  • Type: DDR5 (Dual Channel)
  • Slots: 4 x DIMM
  • Speeds: Up to 6400+(OC)
  • Maximum Memory: 128GB
• CPU Support: Click here for CPU support
• Graphics:
  • Integrated Graphics: Graphics specifications may vary between CPU types
  • Ports: 1 x VGA, 1 x HDMI, 1 x DisplayPort
• PCI/PCI Express:
  • PCIe 4.0 x16: 1 (supports x16 mode)
  • PCIe 4.0 x16: 2 (supports x1 mode)
• Storage:
  • SATA III Ports: 4
  • M.2 Slots: 2 x M.2 (2242/2260/2280) – PCIe
• RAID Support: AMD RAIDXpert2 Technology (PCIe RAID 0/1/10, SATA RAID 0/1/10)
• Wireless:
  • Wi-Fi: Wi-Fi 6 (2×2, 802.11 a/b/g/n/ac/ax)
  • Frequency Band: 2.4/5GHz
  • Bluetooth: v5.2
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported:
  • USB 3.2 Gen2 Type-A: 2 (at back)
  • USB 3.2 Gen1 Type-A: 4 (2 at back, 2 at mid-board)
  • USB 2.0: 8 (4 at back, 4 at mid-board)
  • Front USB 3.2 Gen1 Type-C connector
• Back Panel I/O Ports:
  • USB 3.2 Gen2 Type-A: 2
  • USB 3.2 Gen1 Type-A: 2
  • USB 2.0: 4
  • DisplayPort: 1
  • VGA: 1
  • HDMI: 1
  • Wi-Fi Module: 1
  • Realtek 2.5Gb Ethernet: 1
  • Audio Jacks: 3
  • BIOS FlashBack Button: 1
  • PS/2 Keyboard/Mouse Combo: 1
• Internal I/O Connectors:
  • CPU Fan: 1 x 4-pin
  • CPU OPT Fan: 1 x 4-pin
  • Chassis Fans: 3 x 4-pin
  • Main Power: 1 x 24-pin
  • 12V Power: 1 x 8-pin +12V, 1 x 4-pin +12V
  • M.2 Slots: 2 x M.2 (Key M)
  • SATA 6Gb/s: 4
  • USB 3.2 Gen1 Type-C: 1
  • USB 3.2 Gen1: 1
  • USB 2.0: 2
  • Addressable Gen2 Headers: 3
  • Aura RGB Header: 1
  • Clear CMOS Button: 1
  • COM Port: 1
  • Front Panel Audio: 1
  • S/PDIF Out: 1
  • Speaker: 1
  • SPI TPM (14-1pin): 1
  • System Panel (10-1 pin): 1
• Accessories:
  • SATA 6Gb/s Cables: 2
  • ASUS Wi-Fi Antennas: 1
  • I/O Shield: 1
  • Screw Package for M.2 SSD: 1
  • User Guide: 1
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6000 kg
• Warranty: 3 Years

Additional Information

• Full Product Details

This motherboard is designed to offer top-tier performance and flexibility for both everyday computing and high-demand tasks, featuring a range of advanced connectivity options and customizable features.

ASUS Prime B650M-A WIFI II Motherboard

Description

The ASUS Prime B650M-A WIFI II is a high-performance Micro-ATX motherboard designed for AMD Ryzen 7000 series processors. It features advanced connectivity options, comprehensive cooling solutions, and customizable RGB lighting to enhance your PC build.

Specification

• Socket: AMD AM5
  • Compatibility: Ready for AMD Ryzen™ 7000 Series Desktop Processors
• Connectivity:
  • Wi-Fi: Wi-Fi 6
  • Ethernet: Realtek 2.5Gb Ethernet
  • Storage: M.2 PCIe 5.0
  • USB Ports:
    • USB 3.2 Gen 2
    • Front USB 3.2 Gen 1 Type-C®
• Memory:
  • Technology: DDR5
  • Optimizations: ASUS OptiMem II for improved memory overclocking
• Cooling:
  • Heatsinks: VRM heatsink, PCH heatsink
  • Fan Headers: Hybrid fan headers
  • Software: Fan Xpert 2+
• Lighting:
  • RGB: Aura Sync RGB Lighting
  • Headers: Onboard Addressable Gen 2 headers, Aura RGB header
• Customization:
  • Comprehensive controls for tuning and system optimization
  • Intuitive RGB lighting controls

Features

• Performance: Designed to handle high core counts and bandwidth demands, with stable power and flexible data transfer options.
• Cooling: Equipped with multiple heatsinks and hybrid fan headers to ensure optimal performance under load.
• Flexibility: Tools for tuning every aspect of your system to match your productivity needs.
• Customization: Includes exclusive audio codecs and RGB lighting controls for a personalized look.

Additional Information

• Full Product Details

This motherboard offers a robust set of features ideal for high-performance computing and customization.
