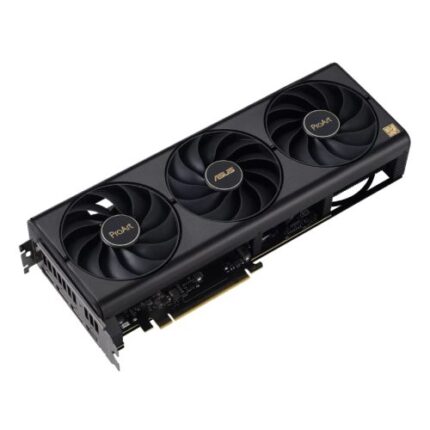

ASUS – NVRTX4080S16ASPAOC

Asus ProArt RTX4080 SUPER OC, PCIe4, 16GB DDR6X, HDMI, 3 DP, 2640MHz Clock, Overclocked, Compact 2.5 Slot Design

Description

The ProArt GeForce RTX™ 4080 SUPER OC Edition 16GB GDDR6X combines refined aesthetics with top-tier performance, making it an ideal choice for high-end creator PC builds. It delivers the full capabilities of the GeForce RTX™ 40 SUPER Series.

Specification

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 4.0
• Graphics Chipset: Nvidia RTX 4080 SUPER
• Memory Size: 16GB
• Memory Type: DDR6X
• Memory Interface: 256-bit
• Core Clock:
  • OC mode: 2640 MHz
  • Default mode: 2610 MHz (Boost clock)
• Memory Clock: 23 Gbps
• CUDA Cores / Stream Processors: 10,240 CUDA Cores
• Outputs:
  • 1 x HDMI 2.1a
  • 3 x DisplayPort 1.4a
• HDCP Support: Yes
• Resolution: 7680 x 4320
• Multi-GPU Support: None
• Max Display Support: 4
• Cooling:
  • Axial-tech Fans
  • Dual Ball Fan Bearings
  • 0dB Technology
• PSU Requirements: 850W or greater recommended
• Connectors Required: 1 x 16-pin power
• Software: ASUS GPU Tweak III, GeForce Game Ready Driver, & Studio Driver
• Additional Features: See Overview
• Dimensions: 300 x 120 x 50 mm
• Slot Size: 2.5 Slot
• Accessories:
  • 1 x Collection Card
  • 1 x Speedsetup Manual
  • 1 x Adapter Cable (1 to 3)
  • 1 x ProArt Graphics Card Holder
  • 1 x ASUS Velcro Hook & Loop
  • 1 x Thank You Card
• Package Type: Retail
• Package Weight: 1.980 kg

Description

The ProArt GeForce RTX™ 4080 SUPER OC Edition 16GB GDDR6X combines elegant design with cutting-edge performance, empowering creator PC builds with the full-scale capabilities of the GeForce RTX™ 40 SUPER Series.

Specification

• NVIDIA Studio: RTX and AI-accelerated creator apps, exclusive AI software, and Studio Drivers for unmatched creativity and performance
• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2x ray tracing performance
• Core Clock:
  • OC mode: 2640 MHz
  • Default mode: 2610 MHz
• Cooling:
  • Axial-tech fans scaled up for 21% more airflow
  • Reverse Rotation and 0dB Technology
  • High-quality diecast shroud
  • Aluminium backplate
• 2.5-slot Design: Allows for greater build compatibility while maintaining premium cooling
• Dual Ball Fan Bearings: Last up to twice as long as conventional designs
• Auto-Extreme Precision: Automated manufacturing for higher reliability
• GPU Tweak III: Profile Connect enables seamless optimization of system performance and cooling for every app

Axial-tech Upgrades

• A Fresh Spin: Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air, enhancing cooling performance, reducing noise, and improving overall efficiency.

Reverse Rotation and 0dB Technology

• Orchestrated Chill: The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion. All fans stop when GPU temps are below 50°C for quieter operation during light tasks, and resume at over 55°C with a balanced speed curve for performance and acoustics.

2.5-slot Design

• Custom Heatsink: Heatpipes efficiently transfer heat to a fin stack optimized for airflow, dressed in black to match the ProArt theme.

Dual BIOS

• Choose Wisely: Switch between Performance mode for cooler operation and Quiet mode for reduced noise levels. GPU Tweak III software provides further customization and control.

Auto-Extreme Technology

• Reliability Boost: Automated manufacturing with single-pass soldering reduces thermal strain and environmental impact, providing a more reliable product with lower power consumption.

Software

• GPU Tweak III: Offers a revamped interface for easy access to core functions, performance tuning, 0dB fan technology, customizable on-screen display, and logging capabilities. Profile Connect integrates optimization for every creative task.
• QuantumCloud: An application for earning money by sharing your graphics card’s computing power, with earnings accessible via PayPal or WeChat and supporting multiple exchange methods.
