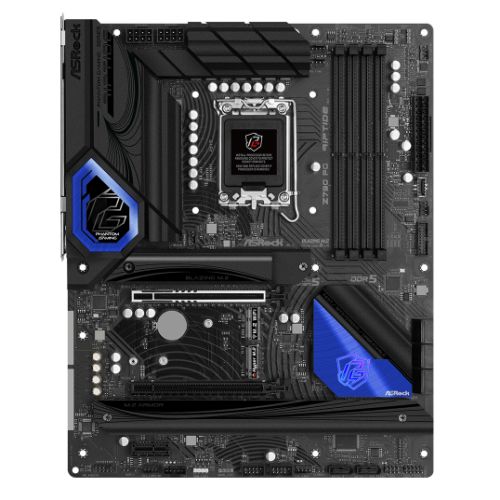

ASROCK – ASMBZ790PGRIPTIDE

Asrock Z790 PG RIPTIDE, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 5x M.2

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6800+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI, 1 x DisplayPort
• Multi-GPU Support: Supports AMD CrossFire
• PCI/PCI Express:
  • 1 x PCIe 5.0 x16 (supports x16 mode)
  • 1 x PCIe 4.0 x16 (supports x4 mode)
  • 1 x PCIe 3.0 x1
• Storage:
  • 8 x SATA III
  • 1 x M.2 (2280) – PCIe
  • 1 x M.2 (2280) – PCIe
  • 1 x M.2 (2260/2280) – PCIe
  • 1 x M.2 (2260/2280) – PCIe
  • 1 x M.2 (2260/2280) – PCIe
• RAID:
  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
• Wireless: –
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported:
  • 1 x USB 3.2 Gen1 Type-C (at back)
  • 2 x USB 3.2 Gen2 Type-A (at back)
  • 6 x USB 3.2 Gen1 (4 at back*, 2 at mid-board)
  • 6 x USB 2.0 (2 at back, 4 at mid-board)
  • 1 x Front Panel Type-C USB 3.2 Gen2x2 Header
    *USB32_56 are Lightning Gaming Ports
• Front Panel I/O Ports:
  • 2 x Antenna Mounting Points
  • 1 x HDMI
  • 1 x DisplayPort 1.4
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 2.0
  • 1 x RJ-45 LAN
  • HD Audio Jacks
• Internal I/O Connectors:
  • 1 x SPI TPM
  • 1 x Power LED and Speaker
  • 1 x RGB LED
  • 3 x Addressable LED
  • 1 x CPU Fan
  • 1 x CPU/Water Pump Fan
  • 1 x Chassis Fan
  • 4 x Chassis/Water Pump Fan
  • 1 x 24 pin ATX
  • 2 x 8 pin 12V
  • 1 x Front Panel Audio
  • 1 x Thunderbolt AIC
• Accessories:
  • 1 x User Manual
  • 2 x SATA Data Cables
  • 5 x Screws for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.4000 kg
• Warranty: 3 Year Replacement Warranty

Z790 PG Riptide

• Supports 13th Gen & 12th Gen Intel® Core™ Processors
• 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 6800+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• Killer 2.5G LAN

Optimized VRM Design

Dr. MOS Dr.MOS is the integrated power stage solution optimized for synchronous buck-set down voltage applications. Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal results and superior performance.

14+1+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. It offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers.

6 Layer PCB The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking. It supports the latest memory modules with extreme performance.

2oz Copper PCB 2 ounce copper inner layers provide stable signal traces and power shapes, delivering lower temperature and higher energy efficiency for overclocking.

DDR5 XMP & EXPO Support Built with low-loss materials, this motherboard supports DDR5 memory overclocking with pre-tested profiles. Ensure memory modules are Intel® XMP/AMD EXPO™ capable for easy and effective overclocking.

DDR5 Memory With Protection Circuit ASRock has implemented a protection circuit on every DDR5 motherboard to lower the risk of damaging memory modules during removal or installation.

PCIe 5.0 + Surface-Mount Tech SMT type PCIe slot improves signal flow and maximizes stability under high speed, supporting the latest PCIe 5.0 standard with a bandwidth of 128GB/s for high-end graphic cards.

Reinforced Steel Slot [PCIe 5.0 Version] The reinforced steel slot supports PCI Express 5.0, providing extra anchor points, stronger latch, ensuring signal stability, and securing heavy graphics cards.

KiLLER Networking

Killer™ Ethernet E3100 The Killer E3100 2.5 Gbps Ethernet controller is designed for competitive gamers and performance users, offering enhanced detection and prioritization for gaming and multimedia.

Killer GameFast Technology

• Faster Gameplay: Frees up to 10% of CPU cycles and 20% of memory for a smoother gaming experience.
• Easy to Use: Activates with a simple toggle, no further action required.
• Fully Customizable: Allows users to add or remove processes to be stopped.

Killer Prioritization Engine

• Lag Less, Win More: Prioritizes gaming traffic for the lowest in-game latencies.
• Less Buffering: Detects, classifies, and prioritizes network traffic for streaming and entertainment.
• Custom Control: Automatically prioritizes traffic, customizable via Intel® Killer™ Intelligence Center.

Nahimic Audio

• Audio That Matters: Provides engaging listening experiences across various devices.
• Enhance Communication Quality: Algorithms ensure clear, noise-free conversations.
• Sound Tracker: Visual indicator shows sound directions in 360° for immersive gaming.
• Works on Any Devices: Compatible with all audio tools, optimizing sound quality.

High Speed M.2 Solution

PCIe Gen5 Blazing M.2 Accommodates the latest PCI Express 5.0 standard, delivering a bandwidth of 128GB/s and unleashing the full potential of future ultrafast SSDs.

XXL M.2 Heatsink Extra-large aluminum alloy heatsink improves heat dissipation and maintains stability and performance.

Anti-Drop Screw Enhanced M.2 heatsink design prevents dropping screws and simplifies the installation process.

Lightning Gaming Ports Designed for gamers, these ports connect high-speed mice and keyboards with lower jitter and latency.

Polychrome RGB Features onboard RGB headers and addressable RGB headers for connecting compatible LED devices, with synchronization across Polychrome RGB Sync-certified accessories.
